Float Level Switches – SS Custom Made

Description

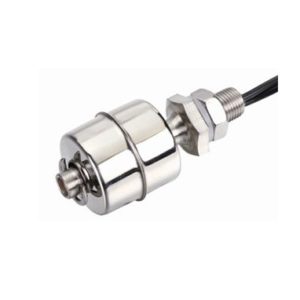

Custom made float level switches Single unit or multiple reed switches are housed tightly in a 316 stainless steel stem. A permanent magnet which will activate the reed switch is within the 316 stainless steel float. The float or floats are mounted on the stem & located by the use of 316 stainless steel collars. The rise & fall of liquid moves the float up & down. When the float’s internal magnet approaches the reed switch, it will actuate the reed switch, to create a change of state in the circuit.- i.e. either opening or closing the switch.

• Termination Aluminium, bakelite or 316 SS head – max 6 screw terminals [use junction box for more terminals]
• Flying leads — Junction box – screw terminals
• Process Connections – SS or Brass
• Bulkhead fitting or threaded connection [1 inch and 2 inch BSP]
• Flange connection (including sanitary flanges).

Floats are in 316 SS – max 150°C – max. 30 bar with S1 type 25 mm OD SG < 0.8 and S4 type 50 mm OD SG < 0.55.

A maximum 5 float scan can be fitted in one stem assembly.



TO ORDER PLEASE FILL IN THE FOLLOWING ”EDITABLE PDF” THAT BEST SUITS YOUR APPLICATION



PDF – LS-S1-Nipple-Templog – S1 SMALL FLOAT NIPPLE MOUNT



PDF – LS-S1-Flange-Templog  – S1 SMALL FLOAT FLANGE MOUNT



PDF – LS-S4-Nipple-Templog – S4 LARGE FLOAT NIPPLE MOUNT



PDF – LS-S4-Flange-Templog – S4 LARGE FLOAT FLANGE MOUNT
